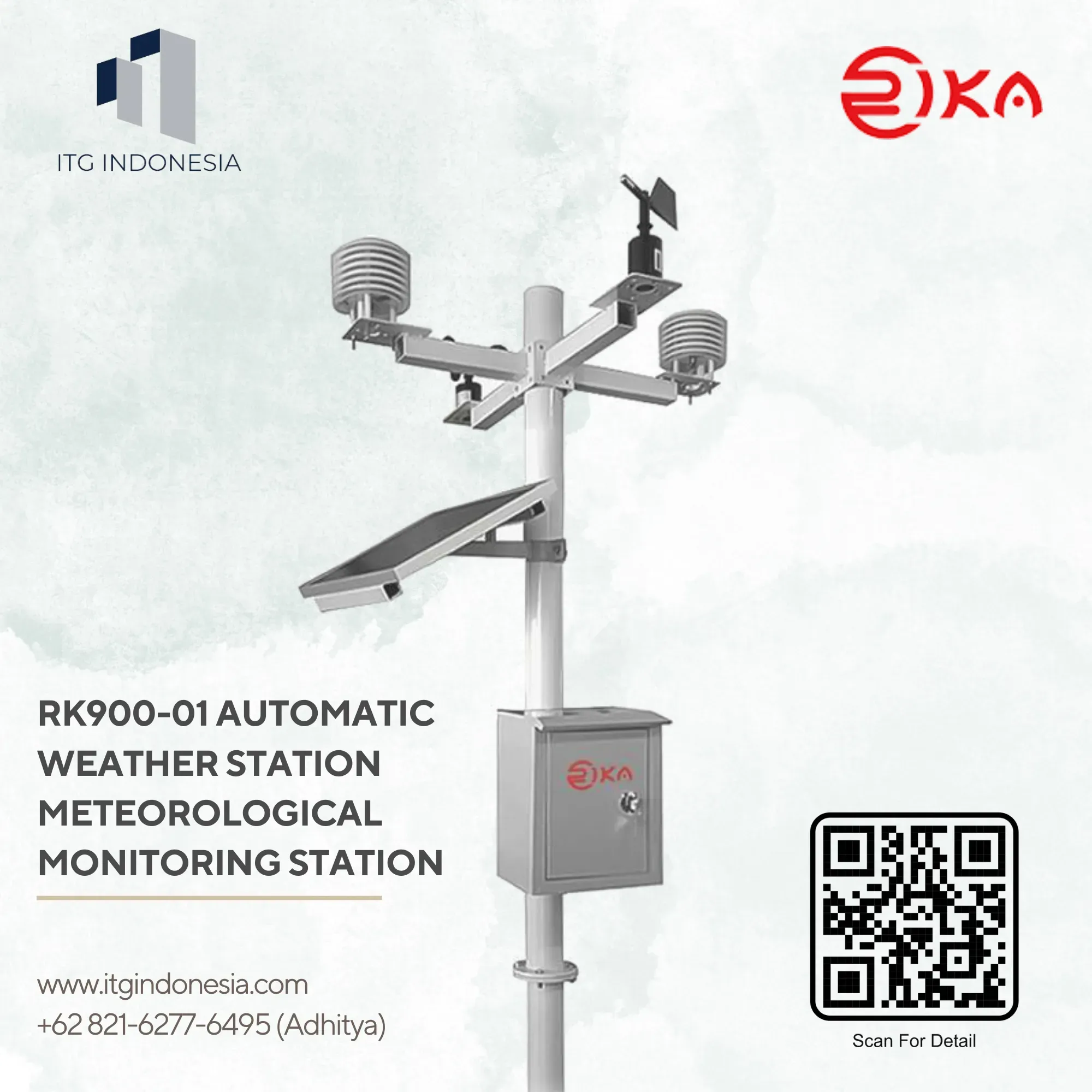

RK900-01 Automatic Weather Station Meteorological Monitoring Station
Deskripsi
Stasiun Cuaca Otomatis RK900-01 adalah alat canggih untuk mengukur berbagai parameter lingkungan, seperti suhu udara, kelembaban relatif, tekanan atmosfer, kecepatan & arah angin, radiasi matahari, intensitas cahaya, curah hujan, serta suhu dan kelembaban tanah.
Dilengkapi dengan berbagai sensor presisi tinggi, layar LCD, pengumpul data meteorologi, serta rangka dan penyangga yang kokoh, RK900-01 dirancang untuk memberikan hasil yang akurat dan andal. Stasiun cuaca ini ideal untuk digunakan dalam meteorologi, hidrologi, pertanian, kehutanan, penelitian ilmiah, dan berbagai bidang lainnya.
Spesifikasi
| Parts | Details | Note |

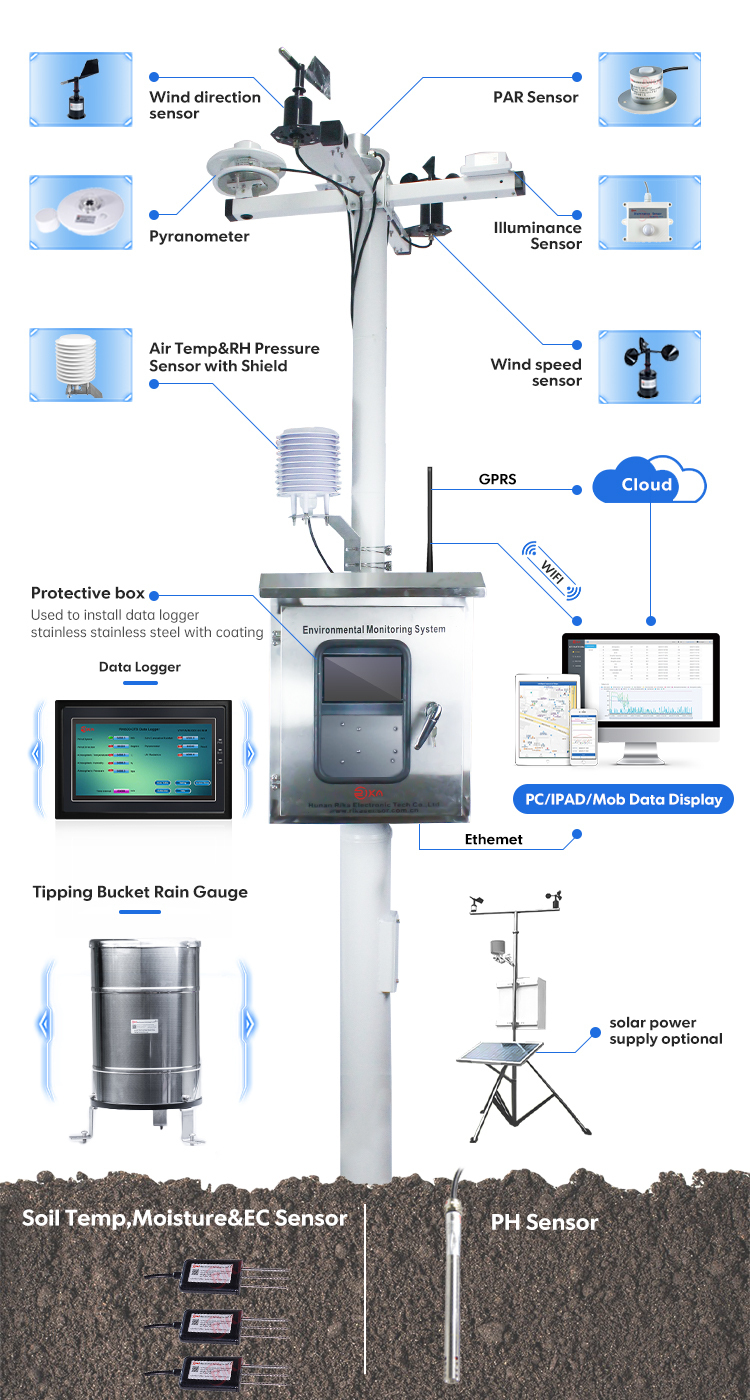

| Data logger | Meteorological data collection, display, storage and communications | |
| Sensors & cable | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user’s requirements) | |

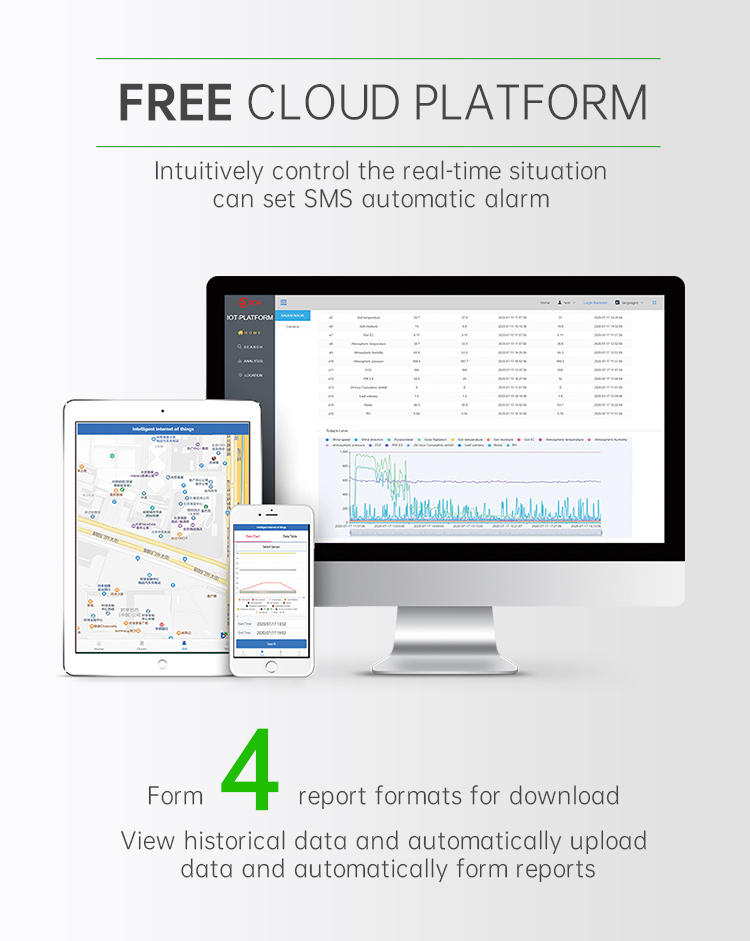

| Meteorological monitoring software | Use to real-time display, analysis and storage data on the PC | Attached |
| Multi-plate radiation shield | Used to install the atmospheric temperature, atmospheric humidity and atmospheric pressure sensors | |
| Tripod & accessories | Height: 2.5m typ.,304SS or Height: 10m(4m+3m+3m) steel with coating is optional other height is optional | |
| Protective box | Used to install data logger,solar charge controller and battery, stainless steel or steel with coating | |
| 110VAC/220VAC adapter | Optional when using AC power supply | |
| RS485 cable | 2m | |
| RS485 converter | Signal Conversion for RS485 | |
| U disk | Used for data storage | optional |

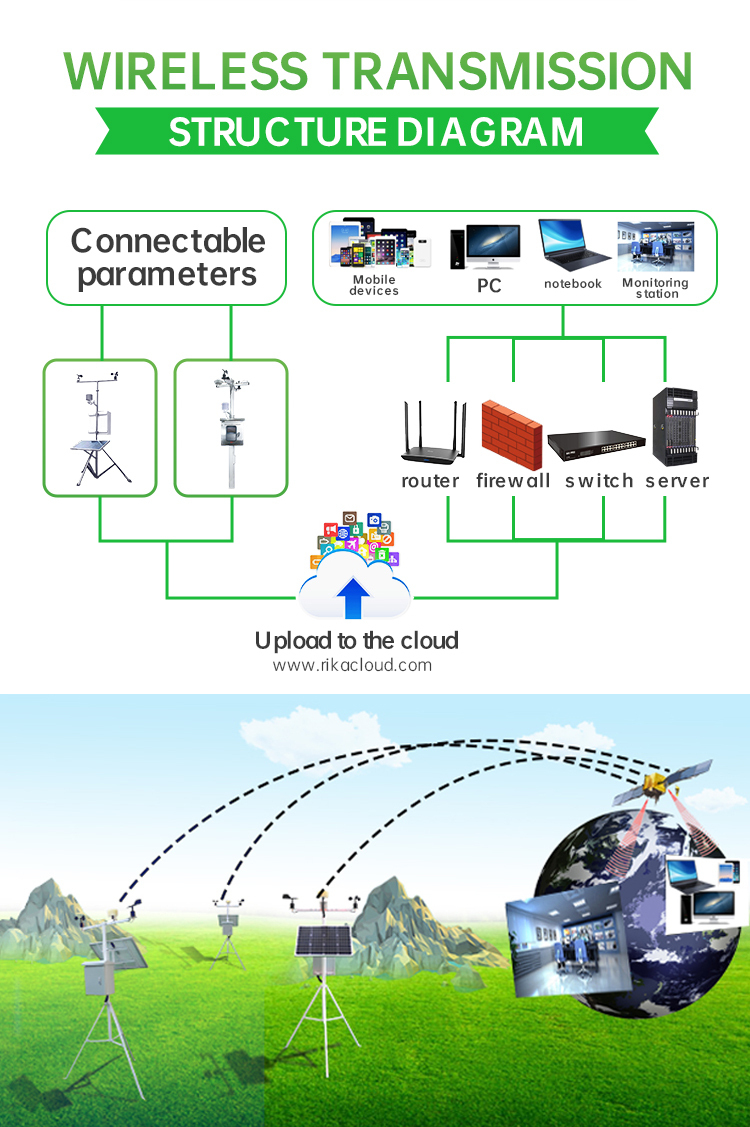

| GPRS module | Used for wireless data transmission, need to match with the local mobile communication network | optional |
| WIFI module | Used for wireless data transmission,need for wireless networking | optional |
| Ethernet module | Used for wireless data transmission,need for cable network | optional |
| LED screen | Size and display content can be customized | optional |
| Solar power supply system | Include photovoltaic panels(30W), solar charge controller, 25AH battery(Can’t be transported by air. Suggest users to bring their own) | optional |
| Lightning protection device | Contain the lightning rod, connecting wires and grounding angle steel | optional |
| Windbreak wire | Used for fixing 10m support rod | |
| Base fixed steel cage | Used for fixing 10m support rod |
Note:10 m support is recommended for mountainous area or surrounding area with high buildings.
YPICAL APPLICATION & TECHNICAL SPECIFICATION
General weather station:
| Measure item | Measure range | Resolution | Accuracy |
| Wind speed | 0-45m/s | 0.1m/s | ±（0.3±0.03V）m/s |
| Wind direction | 0-360º | 1° | ±3° |
| Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
| Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
| Atmospheric pressure | 10-1100hPa | 0.1hpa | ±0.3hPa |
| Rainfall | 0-8mm/min | 0.2mm | ±4% |
| Solar radiation | 0-2000W/m2 | 1W/m2 | ±5% |
Photovoltaic power generation weather station:
| Measure item | Measure range | Resolution | Accuracy |
| Wind speed | 0-45m/s | 0.1m/s | ±（0.3±0.03V）m/s |
| Wind direction | 0-360º | 1° | ±3° |
| Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
| Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
| Atmospheric pressure | 10-1100hPa | 0.1hpa | ±0.3hPa |
| Photovoltaic panels temperature sensor | -50-+100℃ | 0.1℃ | ±0.5℃ |
| Total solar radiation | 0-2000W/m2 | 1W/m2 | ±3% |
| Rainfall(optional) | 0-8mm/min | 0.2mm | ±4% |
| Hall current sensor(optional) | 0-500V | 1V | ±0.5% |
| Hall voltage sensor(optional) | 0-150A | 0.1A | ±0.5% |
Agricultural weather station:
| Measure item | Measure range | Resolution | Accuracy |
| Wind speed | 0-45m/s | 0.1m/s | ±（0.3±0.03V）m/s |
| Wind direction | 0-360° | 1° | ±3° |
| Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
| Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
| Atmospheric pressure | 10-1100hPa | 0.1hpa | ±0.3hPa |
| Solar radiation | 0-2000W/m2 | 1W/m2 | ±5% |
| PAR sensor | 0-2500μ*mol*m2*s | 1μ*mol*m2*s | ±1% |
| Rainfall | 0-8mm/min | 0.2mm | ±4% |
| Soil temperature | -50-+80℃ | 0.1℃ | ±0.5℃ |
| Soil moisture | 0-100% | 1% | ±3% |
| CO2(optional) | 0-5000ppm | 1ppm | ±3% |
| Soil PH(optional) | 0-14PH | 0.1PH | ±0.1PH |
| Soil salinity(optional) | 0-15000mg/L | 1mg/L | ±5% |
| Soil EC(optional) | 0-20mS/cm | 0.1mS/cm | ±5% |
Greenhouse comprehensive monitoring station:
| Measure item | Measure range | Resolution | Accuracy |
| Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
| Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
| Atmospheric pressure | 10-1100hPa | 0.1hpa | ±0.3hPa |
| CO2 | 0-5000ppm | 1ppm | ±3% |
| Illuminance | 0-200000lux | 1lux | ±7% |
| Soil temperature | -50-+80℃ | 0.1℃ | ±0.5℃ |
| Soil moisture | 0-100% | 1% | ±3% |
| Solar radiation(optional) | 0-2000W/m2 | 1W/m2 | ±5% |
| PAR sensor(optional) | 0-250μ*mol*m2*s | 1μ*mol*m2*s | ±1% |
| Soil PH(optional) | 0-14PH | 0.1PH | ±0.1PH |
| Soil salinity(optional) | 0-15000mg/L | 1mg/L | ±5% |
| Soil EC(optional) | 0-20mS/cm | 0.01mS/cm | ±5% |
Scenic area weather station:
| Measure item | Measure range | Resolution | Accuracy |
| Wind speed | 0-45m/s | 0.1m/s | ±（0.3±0.03V）m/s |
| Wind direction | 0-360º | 1° | ±3° |
| Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
| Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
| Atmospheric pressure | 10-1100hPa | 0.1hpa | ±0.3hPa |
| Rainfall | 0-8mm/min | 0.2mm | ±4% |
| Uv radiation | 0-200W/m2 | 1W/m2 | ±5% |
| Ground temperature | -50-+80℃ | 0.1℃ | ±0.5℃ |
Notice:
1.The measurement items can be increased or deleted in the table;
2.Measured data is automatically recorded and stored for download analysis;
3.If there are other functional requirements, we can provide customized solutions.
